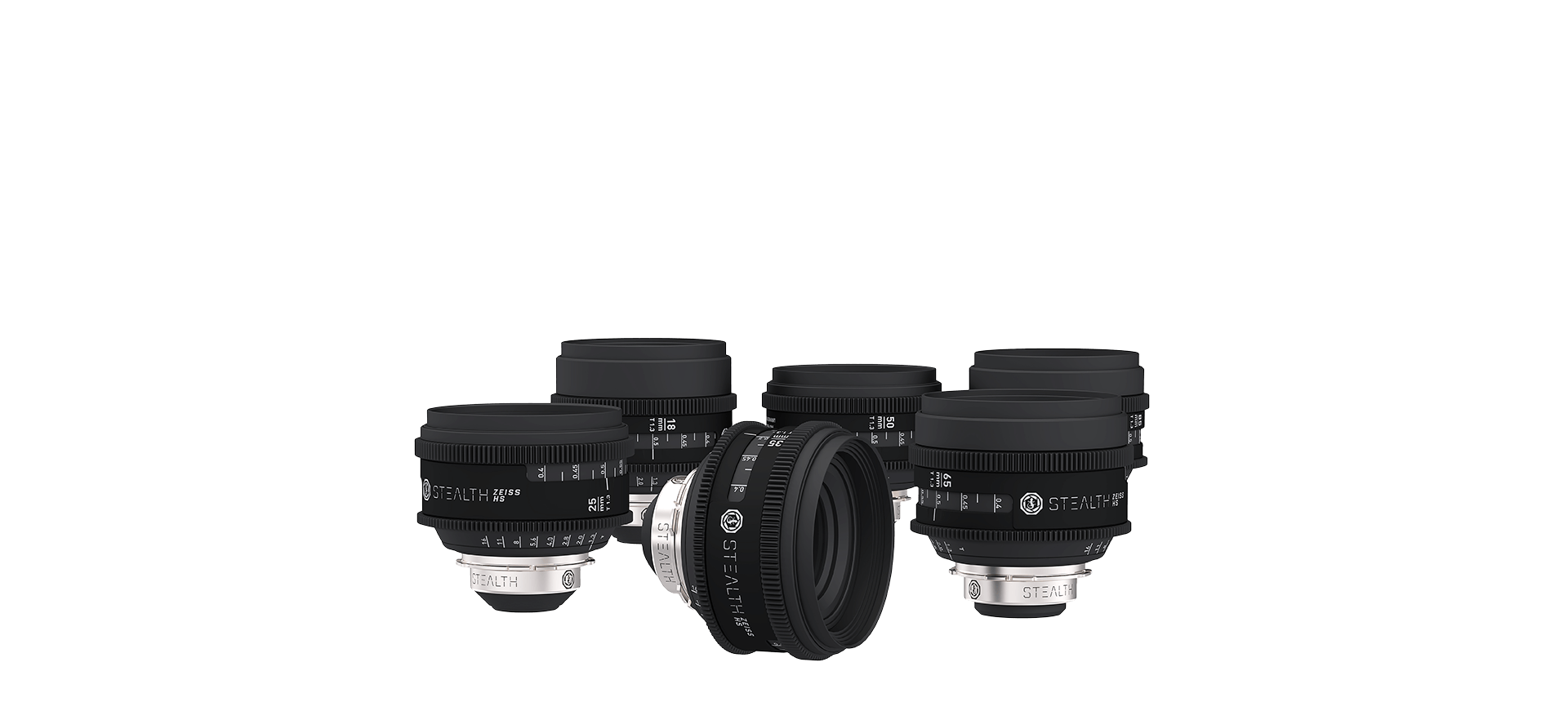

Stealth Rehousing Zeiss HS

DEVELOPED & CONSTRUCTED IN GERMANY THE NEW MECHANIC IMPROVES YOUR WORK FLOW & QUALITY.

FUTURE – PROOF

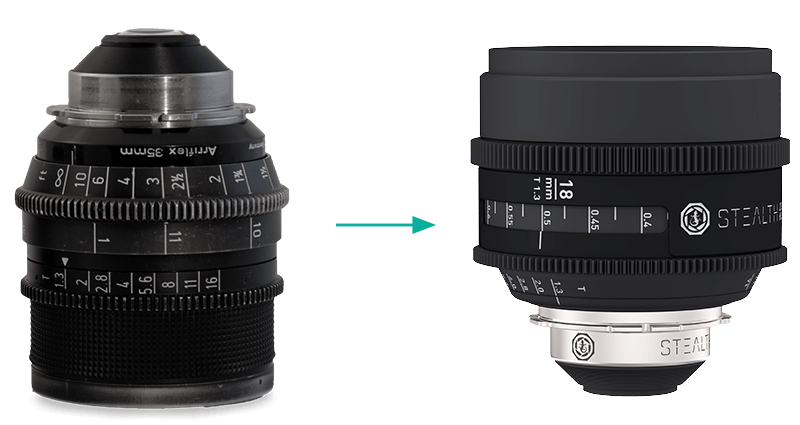

The Growing interest in vintage lenses makes them keeping up with the requirements of modern motion picture industry. Gecko-Cam developed a robust and lightweight Rehousing for the popular Zeiss Highspeed lenses.

FEATURES

Developed and constructed in Germany
Small and lightweight
Same front diameter – 95 mm
Gearrings at same position
Cam follower system
Front hardmounted with lens mount
Interchangeable mounts & focus scales
Precise CNC-engraving
Focus range 270 degrees
Prepared for Gecko-Motor Bracket
Improved for optical service

SPECS

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-50mm-01

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-65mm-01

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-85mm-01

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-18mm-01

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-25mm-01

GKM001-PM-003_WEBSITE-LINE-DRAWINGS-HS-35mm-01

Zeiss HS	18mm	25mm	35mm	50mm	65mm	85mm
Mount	PL	PL	PL	PL	PL	PL
T-Stop	T1.3	T1.3	T1.3	T1.3	T1.3	T1.3
CFD M	0,26	0,25	0,33	0,7	0,7	0,9
CFD	10″	10″	13″	23″	23″	29″
Focus Range	270°	270°	270°	270°	270°	270°
Front Diameter	95mm	95mm	95mm	95mm	95mm	95mm
Weight	1500g	1100g	1000g	1050g	1150g	1300g
